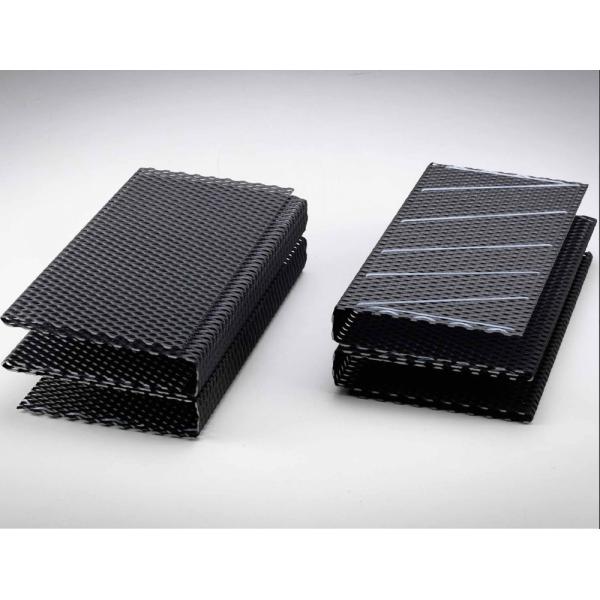

Mixed Metal Oxide MMO Anodes

Name: Mixed Metal Oxide MMO Anodes
Brand: Precise Heater
Price: 200 USD

China Mixed Metal Oxide MMO Anodes wholesale

Brand Name : Precise Heater

Model Number : MMP1001

Certification : CSA,UL,CE

Place of Origin : China

MOQ : 1PCS

Price : 200-800 U.S Dollars

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 400PCS Per Month

Delivery Time : 7 days

Packaging Details : Export Wooden Case

Product name : Iridium-Tantalum coated Titanium Anode

Coating : Rutheium Iridium Oxide

Technique : Acid Washing

Keyword : Iridium-Tantalum coating

Contact Now

MMO Anodes (Mixed Metal Oxide) for Cathodic Protection

Ruthenium Iridium Titanium Anodes

Mixed Metal Oxide MMO Anodes

Because of a very flexible production facility, we are able to manufacture anodes of all types: sheet, plate, mesh, wire, rod, tubular or combinations and/or assemblies of these materials. Their size and number vary from several cm2 to 2 m2 and from 1 to 10,000 pieces. The process in which the anodes are used determines size, shape and coating specification of an anode.

Important parameters determining the anode design are:

◆ The electrochemical cell or installation wherein the anodes are used

◆ The process conditions, such as electrolyte composition, temperature, current density, design life, etc.

◆ Mechanical load of the anode

◆ Capacity of electrical conductivity of the base material.

All anodes are produced according to customer specifications. When these specifications are not yet completely determined, our engineers are pleased to use their knowledge and experience to finalise the design together with the customer.

Main application areas	Anodes and coatings	Details
Cathodic Protection	KERAMOX® Titanium anode Platinised Titanium Anodes based on Niobium or Tantalum	All round applicable At high current densities, for example in sea water High voltages or strongly corrosive electrolytes
Seawater electrolysis	KERAMOX® Titanium anode Titanium with a Ruthenium Mixed Metal Oxide coating Titanium with a Platinum-Iridium Oxide coating	Depending on amongst others temperature and salinity
Electroplating	Titanium with an Iridium Mixed Metal Oxide coating Platinised Titanium	In highly acidic environments such as: Electro galvanising (zinc plating) Anodising of Aluminium Chromium, Nickel,Tin, etc. plating Precious metal plating Reverse pulse Copper plating Hard Chromium plating Precious metal plating
Water treatment	Platinised Titanium Titanium with an Iridium Mixed Metal Oxide coating Boron-Doped-Diamond anodes	Electro dialysis with polarity reversal Recovery of metals Oxidation and break-down of organic contaminations Higher overpotentials,amongst others for disinfection
Hypo chlorite & Disinfection	Titanium with a Ruthenium Mixed Metal Oxide coating Titanium with an Iridium Mixed Metal Oxide coating Titanium with a Platinum-Iridium Oxide coating	Depending on salinity, polarity reversal and current density
Synthesis reactions	Platinised Titanium Titanium with an Iridium Mixed Metal Oxide coating Boron-Doped-Diamond anodes	Depending on the particular reaction At higher overpotentials
Hydrogen production	Nickel electrodes with a precious metal coating	Coating process by means of exchange plating The purpose is to decrease the overpotentials

Ruthenium iridium coated titanium anode
Material	Gr1 titanium as substrate, Ruthenium-Iridium oxide as coating
Coating Thickness	8~12micron
Parameter	1. Current density≤2000A/M2 2. Temperature<60°C 3. PH 0.1~14 4. Max content of Fluoride ion is 200PPM
Dimension & Shape	1. Plate/Tube/Rod/Mesh shape, different dimension is available 2. or according to client's drawing
Advantages	1. Effective and environmental 2. High current efficiency 3. High anti-corrosion property 4. Long working life 5. Keep the operating voltage stably 6. Small size & light weight 7. Repetitive titanium matrix. Etc.
Applications	1.Water ionizer or water electrolysis Making alkaline and acidic water 2.Waste water treatment Organic sewage treatment, Chemical sewage treatment, Pesticide sewage treatment, Drinking water disinfection, Bleaching & dyeing, Swimming pool Domestic sewage treatment, Hospital sewage treatment, Food industry disinfection etc. 3.Sodium Hypochlorite Generator & Chlorinator Swimming pool water treatment Water sterilization & water purification, Anti-fouling,etc 4.Sea water electrolysis or Electrodialysis Desalination, Material recycling in the waste water, Paper making, Chemical, medical industry, Light industry, Metallurgy, Making fresh water, etc. 5.Chlor-Alkali Industry *Caustic soda and chlorine production
